Automated Hipot Tester 6kv Dc With 8-Channel Parallel Output

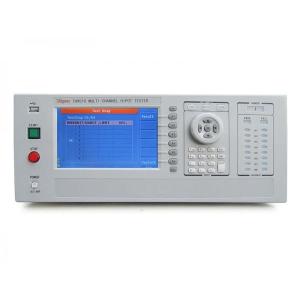

TH9010 Hipot Tester with 8-Channel Parallel Output for Automated Test System

  1. Compliance with Standards: Hipot Testers are designed to comply with industry standards and regulations for electrical safety testing. They are built to meet specific safety standards such as IEC 61010 or UL 120k, ensuring that the testers themselves are safe to use and provide reliable results.

Features

7-inch 800×480 dot-matrix, TFT-LCD display

Chinese and English operation interface and concise interfacet operation design

8-channel withstand voltage parallel output and test efficiency increased eight times

Parallel 8-channels and each channel is non-interfering

Each channel can be extended by a four-channel scanner

Support 4 four-channel scanner at most and one instrument can be extended to 128 channels

Four-channel scanner supports contact check function

Single output power: AC:5kV/10mA; DC:6kV/5mA

Insulation resistance test voltage: 0.10kV -1.00kV

Enhanced security: electric shock protection

Rapid discharge and arc detection function

Arbitrarily set voltage rising time and test time in 999.9 seconds;freely set waiting time for insulation resistance

Key-Lock Function

Display the PASS/FAIL result of each channel independently and the total result simultaneously

Store 100 test files and each file can hold at most 20 testing steps

Application

Automated test system

Household appliances

Transformers, motors

Electrical equipment

Lighting industry

New energy vehicles

Electronic components

Medical equipment

Specifications

ModelTH9010TH9010A
Number of Unitsseparate channelseparate channel
Withstanding Voltage Test
Output VoltageAC0.10kV5.00kV2%
DC0.10kV6.00kV2%
Current TestRangeAC0mA10.00mA(2% readings + 5 digits)
DC0uA5.00mA(2% readings + 5 digits)
Rapid Discharge FunctionDischarge after test ends (DCW)
Insulation Resistance Test
Output Voltage0.10kV1.00kV2%
Resistance Test Range0.1M10.0G
Resistance Test Accuracy

0.10M999M ±10% reading+5digits

1.00G10.0G ±20% reading+5digits

Discharge FunctionDischarge after test ends
Arc Detection
Test RangeCorresponding Current1mA20mA
General Specification
Voltage Rising Time0.1s999.9s
Test time Setting (AC/DC)0.2s999.9s
Voltage Fall Time0.1s999.9s
Waiting Time (IR)0.2s999.9s
Time Accuracy±(1%+0.1s)
MemoryStore 100 test files and each file can hold at most 20 testing steps
Interface
StandardHANDLER, RS232, USB DRV, USB HOST

Accessary

Standard
Accessories nameModel
RS232 connection cable (with TH10101) (two holes at both ends, 2 and 3 feet cross) (2H/DB-9F 2/L 140TH26034
TH9010 series high voltage test cable (without clip)TH90016
TH9010 series high voltage test cable (with clip)TH90015
Optional
Accessories nameModel
